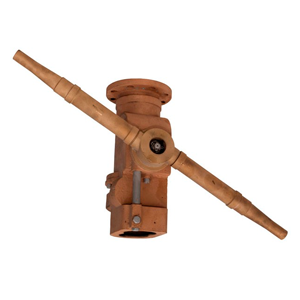

Jetstream Model A MK II
The Model A MKll tankwashing machine was developed for Crude Oil Washing and includes a 4-stage wash pattern to allow the COW operation to be selected for a quarter, half, three-quarter or full wash of the tank, providing operators with a significant timesaving facility. The wash pattern is uniquely designed to give a maximum of bottom washing capability with the advantage of the entire tank being washed within each part cycle at a pre-determined intensity of pattern.
The simplicity of the Mark II Model A construction, with no controls to adjust, sets it apart from the single nozzle approach with reliability and ease of operation being major advantages.with the advantage of the entire tank being washed within each part cycle at a pre-determined intensity of pattern.
The Mark II Model A can be mounted under the deck-head by means of the Dasic Free Standing Unit, which fits into a standard size tank-washing opening, or the unit may be mounted at mid height or bottom mounted in an inverted position and supplied by up to a 80 mm pipe.
- Operating TemperatureRange: Up to 100°c
- Typical Inlet Connection: PN 16 – 80mm
- Flange: 200.0 O/Dia., 8 Holes at Ø 18.0., PCD 165.0
- Cycle Times: ¼ Wash 20 min., ½ Wash 40 min.
- ¾ Wash 60 min., Full Wash 80 min
